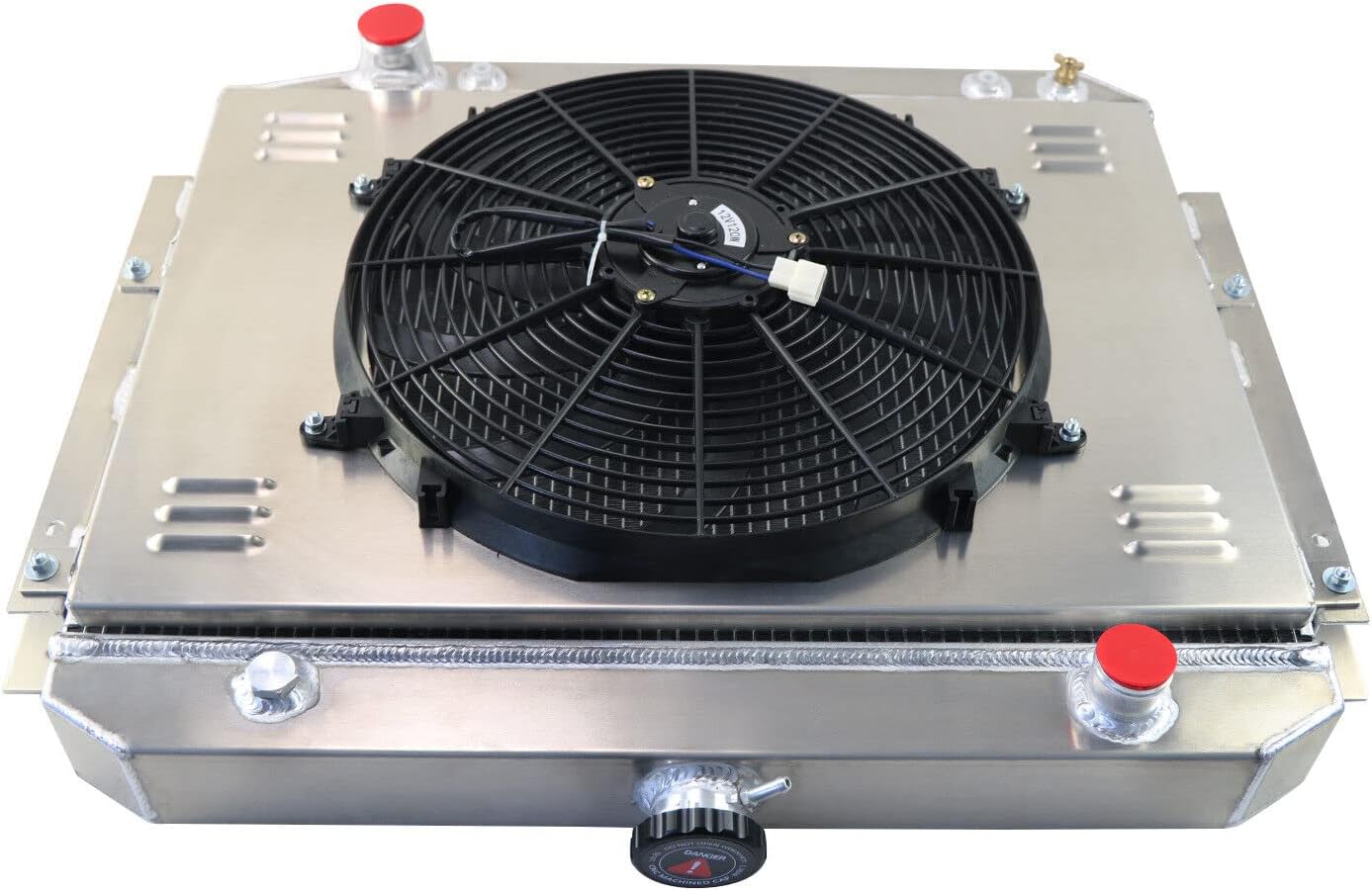

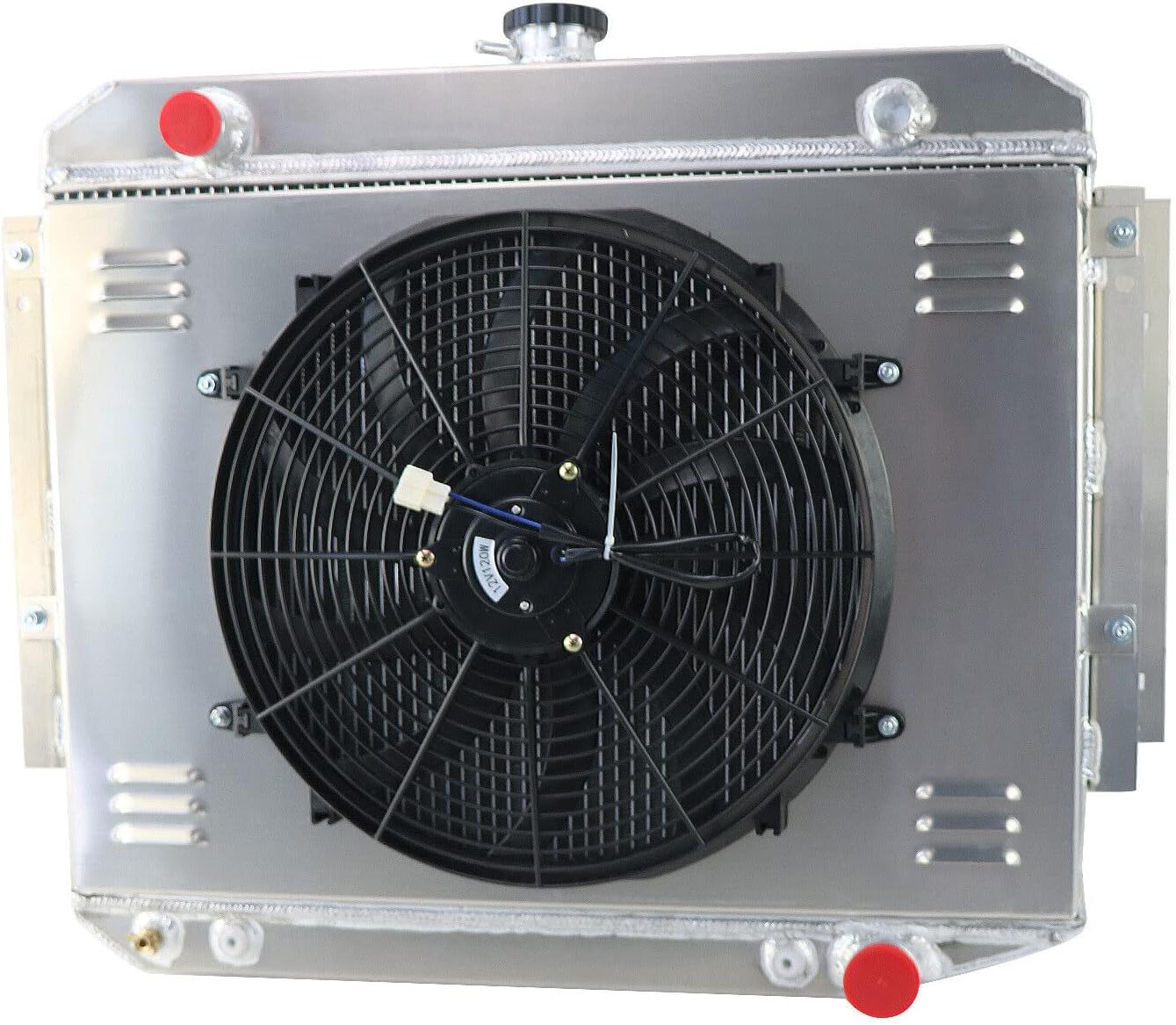

Aluminium Radiator for 1971-1978 Dodge B100 B200 B300 B/D/W Series Pickup 5.2L 5.9L 6.6L 7.2L V8 Gas, 4 Row Full Aluminium Radiator + 16 Inch Fan + Shroud + Thermostat Relay Kit

Radiator Specifics: Condition: 100% Brand New Material: Aircraft AA5052 grade aluminum tank & core Row: 4 Row Core Size: 18'' x 25.9'' x 2.44'' Thickness Overall Size: 24.2''x 30.1'' x 6.5'' T Inlet Diameter: 1.5 inch Driver Side Outlet Diameter: 1.77 inch Passenger Side Transmission Oil Cooler: 26x365x1/8-27NPT(P) Mounting Type: Bracket Includes CNC machined filler neck and cap OEM Style Brass Petcock Drain This Radiator Compatible with: 1971-1979 Dodge B/D/W Series Pickup Van B100, B100 Van, B200, B200 Van, B300, B300 Van, D100, D100 Panel, D100 Pickup, D150, D200, D200 Pickup, D300, D300 Pickup, D400, D450, Ramcharger, W100, W100 Pickup, W150, W200, W200 Pickup, W300, W300 Pickup This radiator is designed for either a 5.2L(318ci) V8, 5.9L(360ci) V8, 6.6L(400ci) V8 or a 7.2L(440ci) V8 engine. PLS check more detailed vehicle information by AmazonConfirmedFit to confirm this radiator fit your vehicle before you order. Fan Spec: Maximum Fan CFM: 2000±200 Fan Diameter (in): 16.050 inches Thickness (in): 2.790 inches Number of Blades: 10 blades Maximum Fan RPM: 2,250 rpm Blade Material: Plastic Amp Draw: 12.70 amps Includes the Mounting Tabs for an Easy Zip Tie Installation Thermostat Relay Kit Instructions: Activates by grounding electric fans at preset temperature. 180'F/165'F turn on/off temperature. RED + connect directly to battery. WHITE wire to ignition switch power source. BLACK goes to thermos switch. BLUE wire goes to the Fans. Shroud+Fans The fan and the fan shroud effectively drive the heat over and out the engine compartment rather than thrusting it into the front of the engine. The fan shroud basically houses the fan blades securing it in place and keeping it from damaging the other engine components that may disturb the smooth and even operation of the engine. With excellent operating temperature management, allowable levels of engine temperature are stabilized. Investing in proper maintenance though will considerably benefit the ride and driving quality in maintaining the ideal working conditions of the engine.

• Core Size: 18'' x 25.9'' x 2.44'' Thickness, Overall Size: 24.2''x 30.1'' x 4.7'' T
• Inlet Diameter: 1.5 inch Driver Side, Outlet Diameter: 1.77 inch Passenger Side
• Transmission Oil Cooler: 26x365x1/8-27NPT(P)

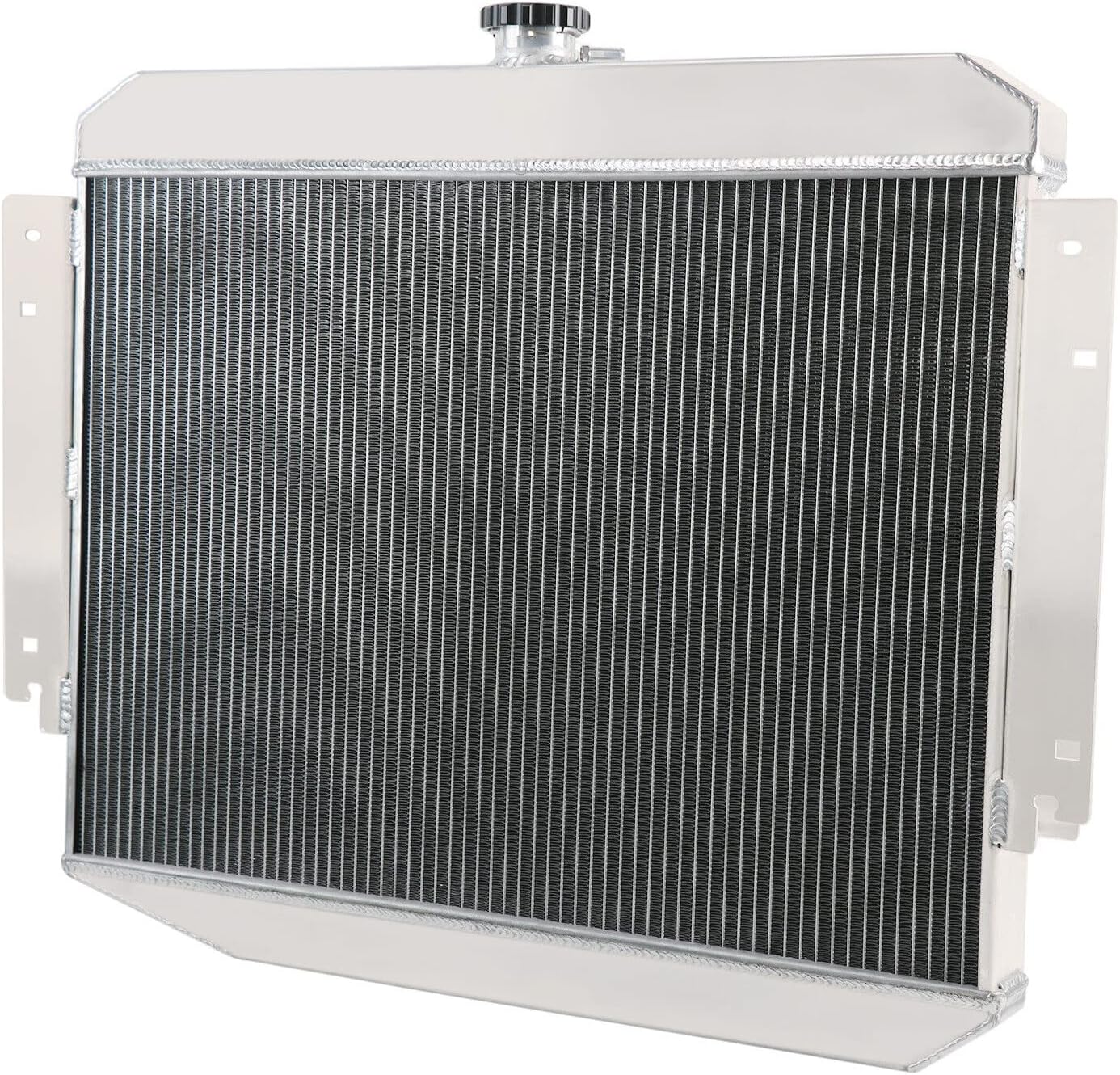

• 100% brazed aluminum core, TIG-welded to aluminum end tanks for superior durability and longevity

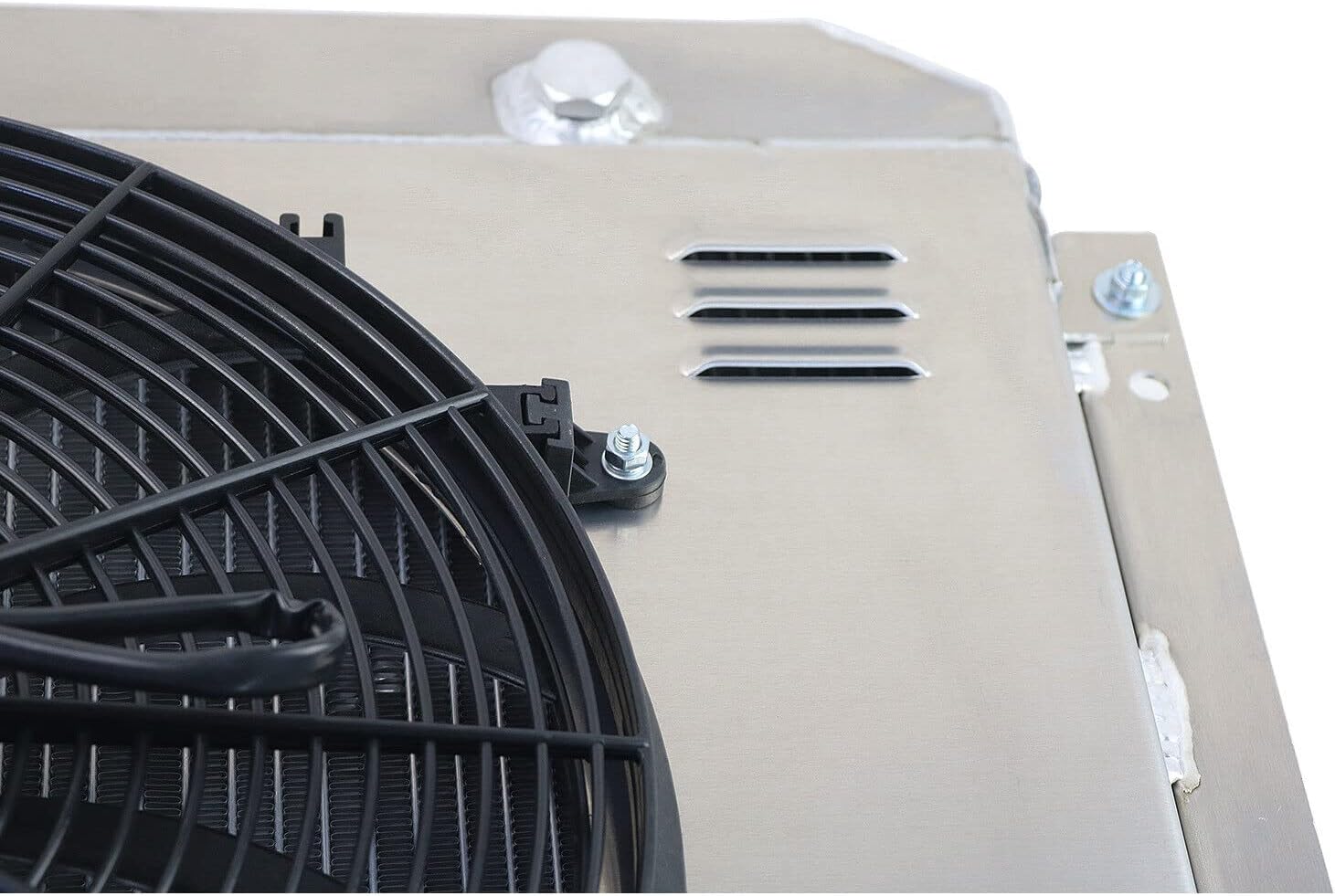

• Shroud fan provides protection and extra heat heat dissipation for the radiator
